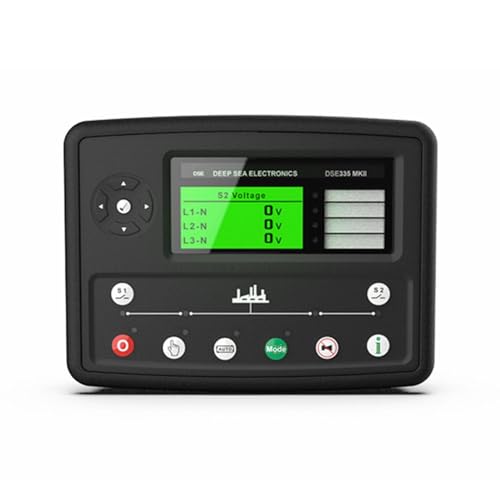

Thunder Parts DSE335-11 Automatic Transfer Switch Module
“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.
View full product detailsProduct Details
Original listing and package details
Thunder Parts DSE335 Original - Made in UK | Auto Transfer Switch Control Module | DSE0335-11 Monitors Voltage/Frequency of AC Supply from 2 Different Sources
Brand: Thunder Parts
Model: DSE335-11
Features
- DSE0335-11 Original - Made in UK
- DSE335-11 Automatic Transfer Switch Control Module has been expertly developed to monitor the voltage and frequency of an incoming AC supply from two different sources
- These sources can be generator or mains (utility), or a combination of both.
- When a failure occurs a start command is issued to the inactive source to take over the load.
- The module will return the load to the mains (utility) as soon as this becomes available.
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
- CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
- MAXIMUM OPERATING CURRENT: 480 mA at 12 V, 360 mA at 24 V. MAXIMUM STANDBY CURRENT: 126 mA at 12 V, 96 mA at 24 V
- S1 VOLTAGE RANGE: 15 V AC to 415 V AC (L-N) FREQUENCY RANGE: 3.5 Hz to 75 Hz
- OUTPUTS OUTPUTS A & E: Normally closed volt-free output 8 A AC at 250 V AC. OUTPUTS B & F: Normally open volt-free output 8 A AC at 250 V AC
Details
The Thunder Parts DSE335-11 automatic transfer switch control module monitors AC voltage and frequency from two sources, such as a generator and mains supply. When a source fails, it issues a start command to the inactive source and returns the load to mains when available. It supports continuous supply operation from 8 V to 35 V and includes normally open and normally closed volt-free outputs.
UPC: 793155234122
