Blue Sky Energy Solar Boost SB3024iL MPPT Charge Controller 40A/30A, 12V/24V Battery. Auxiliary Output for Dual Battery Charge or 20A LVD Load Output
Garden & Outdoor

Blue Sky Energy

Blue Sky Energy SB3024iL MPPT Charge Controller

$259.00
Brand Blue Sky Energy
Category Energy Controllers
GTIN / UPC 026190336002

“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.

View full product details
Shipping destinations, methods, costs and estimates are shown at checkout for eligible direct orders.
Questions? Contact Eco Sweet Home at info@ecosweethome.com.
Find supplies for gardening, patio living and outdoor projects in one store.

Product Details

Original listing and package details

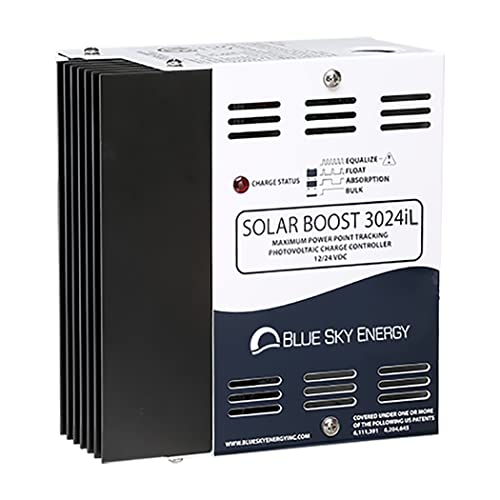

Blue Sky Energy Solar Boost SB3024iL MPPT Charge Controller 40A/30A, 12V/24V Battery. Auxiliary Output for Dual Battery Charge or 20A LVD Load Output

Listed size / pack: 6.86 x 6.6 x 3.38"

Brand: Blue Sky Energy

Model: CCTLR-BS-MPP-040A

Size: 6.86 x 6.6 x 3.38"

Features

  • MPPT BUCK charge controller 12/24V battery. With 12V-nominal battery, 40A charge with 36-cell panels up to 540W or 30A with 60/72-cell panel up to 400W
  • Max. recommended panel Voc 45.6V at STC (max input voltage 57V). Auxiliary Output programmed for max 20A with LVD or for 2A maintaining of a secondary battery
  • Advanced 3-stage charge profile plus equalization for Lead-Acid batteries. Programmable for Lithium batteries with IPN ProRemote display ASIN: B01GW3UPV2. Wireless Bluetooth communication and system monitoring via the BT Connect adapter and mobile app (ASIN: B0HBN73QLF)
  • Ideal for RVs and Marine. IPN capability network interface coordinates up to 8 controllers (Master/Followers)
  • 5-Year Warranty, Made in the USA, CE, FCC, RoHS certifications. Datasheet in “Product Information” below

Details

The Blue Sky Energy Solar Boost SB3024iL MPPT charge controller supports 12V or 24V battery systems and provides configurable auxiliary output for dual-battery charging or a low-voltage disconnect load. It offers a 3-stage charge profile with equalization for lead-acid batteries, programmable lithium battery support, and optional networked monitoring and control.

UPC: 026190336002
