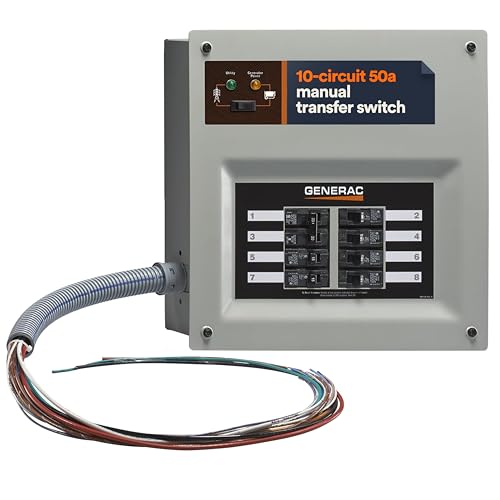

Generac HomeLink 50 Amp Manual Transfer Switch Kit

Brand: Generac

Model: 9854

Color: Gray, Black

Features

• 50-AMP MANUAL TRANSFER SWITCH FOR PORTABLE GENERATOR HOME BACKUP: Powers 10 hard-wired circuits at 120/240V — including furnaces, well pumps, and lighting — with a push-button rocker switch during outages, no extension cords needed
• MECHANICAL INTERLOCK PREVENTS DANGEROUS BACKFEED INTO THE UTILITY GRID: Utility and generator contacts cannot close simultaneously, meeting NEC Article 702 requirements and protecting utility line workers during outage operation
• 12,000-WATT CAPACITY SUPPORTS 240V HIGH-DRAW APPLIANCES AND WELL PUMPS: At 50A / 120/240V single phase, this switch handles the starting surge and running load of well pumps, electric water heaters, and central HVAC circuits simultaneously
• INDOOR NEMA 1 PANEL INSTALLS BESIDE YOUR MAIN BREAKER BOX AT 15.4" x 15.8" x 4": The power inlet box included in the kit is NEMA 3R outdoor-rated; the transfer switch panel itself is designed for protected indoor wall mounting only
• WORKS WITH ANY PORTABLE GENERATOR WITH A COMPATIBLE 50-AMP OR GFCI-PROTECTED OUTLET: Multi-listed for Siemens, Eaton, and Square D 1-inch standard, tandem, GFCI, and AFCI breakers — no breaker replacement required for most existing panels
• EXPAND FROM 10 TO 16 CIRCUITS AND UPGRADE TO AUTOMATIC STANDBY LATER: Interchangeable breakers add circuits as needs grow; the HomeLink platform upgrades to automatic standby for up to an 11 kW Generac generator by swapping the controller only
• 50-AMP CAPACITY IS RECOMMENDED WHEN BACKING UP 240V LOADS OR MORE THAN 8 CIRCUITS: A 30-amp switch maxes out at 7,200W and cannot support 240V appliances like well pumps or dryers; the 50-amp switch handles up to 12,000W for full coverage
• WHAT'S INCLUDED: Pre-wired 50A transfer switch panel, indicator lights, wiring harness, 1-1/4" ENT conduit and fittings, 12-inch pre-wired whip, and installation manual; power inlet box and generator cord included in kit model 9855 only

Details

The Generac HomeLink 50 Amp Manual Transfer Switch Kit provides backup power control for up to 10 hard-wired circuits at 120/240V, including furnaces, well pumps, lighting, and other connected loads. A mechanical interlock prevents utility and generator contacts from closing simultaneously, while the pre-wired panel includes indicator lights, a wiring harness, conduit, fittings, a pre-wired whip, and an installation manual.

UPC: 696471071481
