Thunder Parts TCS2P150-22M Automatic Transfer Switch

Brand: Thunder Parts - Transfer Switch

Model: TCS2P150-22M

Features

• Compact Design and Installation: Easy installation and programming with double throw ATS with neutral OFF, rated current 150 Amps and voltage 220/120 VAC

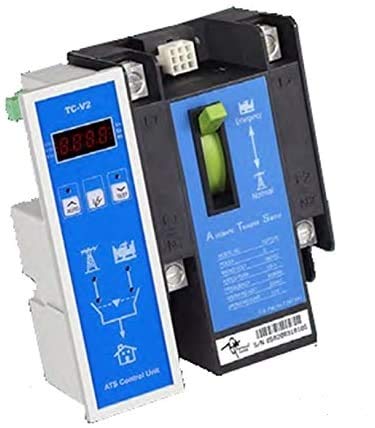

• Complete Automatic Transfer Switch System: TCS2P150 automatic transfer switch includes TS2P150 switch and the TC-V2 electronic control unit with open transition delay on center OFF 1 to 20 seconds
• Advanced Protection Features: NEMA 3R enclosure with lock, switch position connection indicator lights, checks for normal source over and under voltages, and built-in 7-days exerciser with or without load
• Adjustable Timer Controls: Features adjustable TDEN, TDNE, TDES, TDEC timers in a compact size for easy installation and electrically operated mechanically held type ATS
• Electrical Specifications: Rated voltage 120/240 VAC, rated current 150 A, rated frequency 50/60 Hz, double throw type transfer, operating current 2.6A at 220V
• High Performance Standards: 2 poles configuration, rated short-time current 10 KA per one second at 250 VAC, short circuit peak value 25 KA, utilization category AC-33A, life exceeds 6000 times with load
• Quality Construction Materials: Model number TSC2P150-22, class PC, front connection design, manufactured using UL94V-0 rated plastic for enhanced safety and durability
• Voltage Protection Settings: Overvoltage trip 270VAC adjustable, overvoltage reset 260VAC, undervoltage trip 170VAC adjustable, undervoltage reset 180VAC

Details

The Thunder Parts TCS2P150-22M automatic transfer switch combines a double-throw switch with an electronic control unit for open-transition operation and adjustable delay timers. It includes a lockable NEMA 3R enclosure, position indicator lights, source voltage monitoring, and a built-in 7-days exerciser with or without load.

UPC: 793155239325
