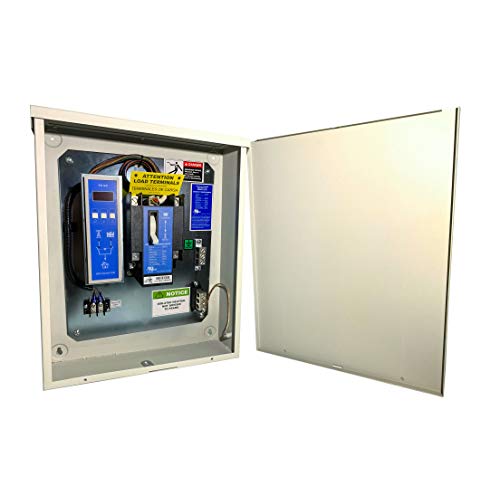

Thunder Parts ATS2PC0125 Automatic Transfer Switch

$1,149.99
Brand Thunder Parts
Category Transfer Switches
GTIN / UPC 793155241489

Purchase directly from Eco Sweet Home. We source products through US warehouse distributors and provide support for your order.

View full product details
Shipping destinations, methods, costs and estimates are shown at checkout for eligible direct orders.
Questions? Contact Eco Sweet Home at info@ecosweethome.com.
Find supplies for gardening, patio living and outdoor projects in one store.

Product Details

Listing and package details

Automatic Transfer Switch | 2 Pole | 125 Amps | 50/60 HZ | Made in USA! | 1 Year Warranty!

Brand: Thunder Parts

Model: ATS2PC0125

Features

  • Rated Voltage: 250 VAC, Rated Current: 125 Amp, Rated Frequency 50/60 Hz
  • Switch Type: Double throw with Neutral position
  • Operating Current: 30.A @ 220V 6.0A @ 110V
  • Poles: 2 Poles, Rated Short-Time Current: 3.0 KA / 1 second @ 250 Vac. Short Circuit Peak Value: 7.5 KA Utilization Category : AC-33A *1 Life: Over 6000 times / with load
  • Rated Operating Voltage:TCS2P125-11 : 90 – 140 Vac TCS2P125-22 : 180 – 270 Vac ATS Class: PC
  • Modular design for installation next to switch or on the door
  • Electrically or Manually Operated, Mechanically Held Contacts
  • Adjustable Time Delay on Neutral
  • Compact Size with User-Friendly Status LED Display
  • Monitor normal source over and under voltages

Details

The Thunder Parts ATS2PC0125 automatic transfer switch uses a double-throw design with a neutral position and mechanically held contacts. It supports electrical or manual operation, adjustable time delay on neutral, normal-source over- and under-voltage monitoring, and a status LED display for convenient system oversight.

UPC: 793155241489
