Automatic Transfer Switch | 2 Pole | 150 Amps | 50/60 HZ | Made in USA! | 1 Year Warranty!
Garden & Outdoor

Thunder Parts

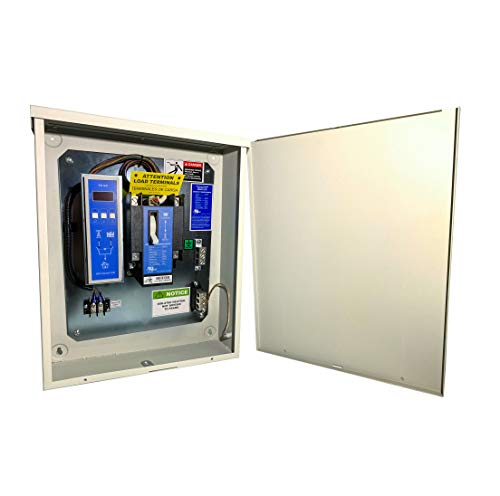

Thunder Parts ATS2P150 Automatic Transfer Switch

$1,299.99
Brand Thunder Parts
Category Transfer Switches
GTIN / UPC 793155241472

“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.

View full product details
Shipping destinations, methods, costs and estimates are shown at checkout for eligible direct orders.
Questions? Contact Eco Sweet Home at info@ecosweethome.com.
Find supplies for gardening, patio living and outdoor projects in one store.

Product Details

Original listing and package details

Automatic Transfer Switch | 2 Pole | 150 Amps | 50/60 HZ | Made in USA! | 1 Year Warranty!

Brand: Thunder Parts

Model: ATS2P150

Features

  • Programmable Control ATS Compact size, easy instalation
  • Rated Voltage: 120/240 VAC Rated Current 150 A Rated Frequency: 50/60 Hz
  • Transfer: Double Throw Type Operating Current: 2.6A @ 220V Poles: 2P
  • Rated Short-Time Current: 10 KA/one sec. @ 250 VAC Short Circuit Peak Value: 25 KA Utilization Category: AC-33A* Life: >6000 Times With Load
  • Model Number: TSC2P150-22 Class: PC Connection: Front Plastic: UL94V-0
  • Overvoltage Trip: 270VAC Adjustable Overvoltage Reset: 260VAC Undervoltage Trip:170VAC Adjustable Undervoltage Reset: 180VAC
  • Remote Start Dry Contact Capacity: 6A @ 277 VAC / 6A @ 28 VDC Max Power Consumption: < 1W
  • Door Mount Cut-Out: 47.0± 0.5 mm Wide x 162 ± 0.5 mm 1.8 inches wide x 6.4 inches High
  • Modular design for installation next to switch or on the door. Electrically or manually operated, mechanically held contacts. Adjustable time delay on neutral.
  • Compact size with User-Friendly status LED display. Monitor Normal & Emergency Source OV and UV.

Details

Thunder Parts ATS2P150 automatic transfer switch features programmable control, double-throw operation, and mechanically held contacts for electrically or manually operated transfer. It monitors normal and emergency sources for adjustable overvoltage and undervoltage conditions, with a status LED display, remote start dry contact support, and adjustable time delay on neutral.

UPC: 793155241472
