POWER PRODUCTS Sigma PTO Clear Water Pump, Yellow
“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.
View full product detailsProduct Details
Listing and package details

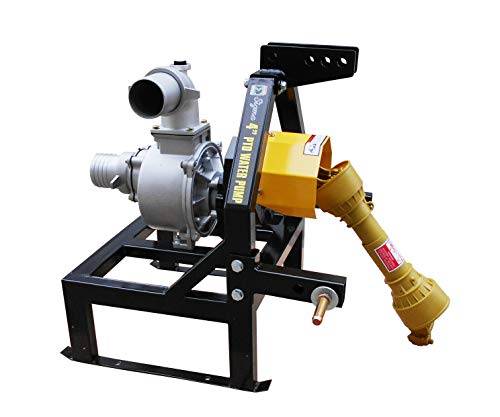

Sigma 4-Inch PTO-Driven Clear Water Pump with 3-Point Hitch & Shaft Gear Drive – Tractor-Powered, 30 PSI Output, 16–20 feet Lift
Brand: POWER PRODUCTS
Color: Yellow
Features
- General Specifications: Outlet Size: 4 inches Inlet Size: 4 inches Operating Speed: 3,600 RPM Total Head: 82 feet Maximum Suction Lift: 20 feet
- The Pump Gearbox is designed to accommodate 540 RPM and is meticulously engineered to transmit the essential 3,600 RPM to the pump. It operates with SAE 90 Gear Oil. Important Note: The gearbox is shipped without any oil included.
- High Flow Rate: PTO water pumps are known for their ability to deliver a high flow rate, ensuring efficient and rapid water transfer for irrigation, dewatering, or other applications. Our pump boasts a flow rate of 80 cubic meters per hour or 352 gallons per minute (GPM).
- Easy Compatibility: PTO pumps are designed to be compatible with a wide range of tractors and power take-off systems, making them versatile and easy to integrate into existing equipment. The required tractor horsepower for our pump falls within a broad range of 15HP to 125HP.
- Our PTO shaft is equipped with a 6-spline tractor end and a rounded implement end, adhering to the standard size of 1-3/8 inches. Its standard length extends to 23 inches.
- Please note: This is a clear water pump, and not a high-pressure pump.
- This PTO water pump typically delivers an outlet pressure of around 30 PSI and is designed primarily to draw clear river water into canals. It is not suitable for high-pressure irrigation systems.
- Before operating, fill the pump with water and add oil to the gearbox. For detailed instructions, please refer to the user manual.
- This pump requires clockwise PTO shaft rotation when viewed from the rear of the tractor.
Details
POWER PRODUCTS Sigma clear water pump transfers water for irrigation, dewatering, and drawing river water into canals. Its tractor-powered PTO gearbox converts 540 RPM input to 3,600 RPM pump speed and delivers up to 352 gallons per minute, with around 30 PSI outlet pressure. Fill the pump with water and add SAE 90 gear oil to the gearbox before operation; the pump requires clockwise PTO rotation when viewed from the rear of the tractor.
UPC: 666714409241
