EPEVER 80A MPPT Solar Charge Controller Tracer-an Series High-Power Charge Controllers Compatible with 12V/24V/36V/48V Lead-Acid and Lithium Batteries (80A)
Garden & Outdoor

EPEVER

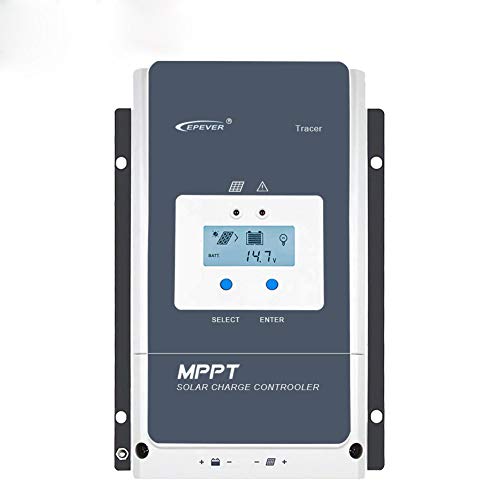

EPEVER Tracer-AN MPPT Solar Charge Controller

$338.99
Brand EPEVER
Category Energy Controllers
GTIN / UPC 732376583596

“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.

View full product details
Shipping destinations, methods, costs and estimates are shown at checkout for eligible direct orders.
Questions? Contact Eco Sweet Home at info@ecosweethome.com.
Find supplies for gardening, patio living and outdoor projects in one store.

Product Details

Original listing and package details

EPEVER 80A MPPT Solar Charge Controller Tracer-an Series High-Power Charge Controllers Compatible with 12V/24V/36V/48V Lead-Acid and Lithium Batteries (80A)

Brand: EPEVER

Color: Tracer8415AN

Features

  • ✦Tracer-AN series support PC software, APP and MT-50 to monitor or set the parameters. Automatically identifying 12/24/36/48V DC system voltage, compatible with various battery options: Sealed, Gel, Flooded and Lithium.
  • ✦Maximum input current: 80A. Maximum PV input power: 1000W/12V; 2000W/24V; 3000W/36V; 4000W/48V. Maximum input voltage(open circuit voltage): 150V. Common negative grounding.
  • ✦Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%; maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%.
  • ✦With Battery temperature compensation function, real-time energy recording and statistical function. Hundred percent full load operation in working environment temperature range within charging & discharging.
  • ✦The isolated RS485 interface with standard MODBUS communication protocol support up to 8 charging in parallel, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc.

Details

The EPEVER Tracer-AN MPPT solar charge controller supports 12V, 24V, 36V, and 48V DC systems and works with Sealed, Gel, Flooded, and Lithium batteries. PC software, an APP, and MT-50 support monitoring and parameter settings, while RS485 with MODBUS communication enables up to 8 controllers to charge in parallel.

UPC: 732376583596
