EPEVER
EPEVER Tracer8415AN MPPT Charge Controller with MT52
“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.
View full product detailsProduct Details
Original listing and package details

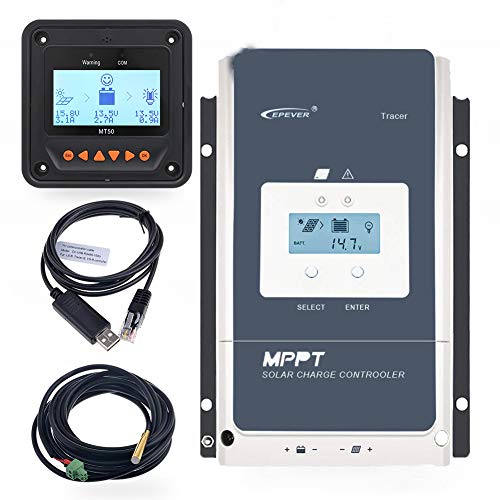

EPEVER 80A MPPT Solar Charge Controller 12/24/36/48VDC Automatically Identifying System Voltage with MT52 Remote Meter & Temperature Sensor RTS & Communication Cable RS485
Listed size / pack: Tracer8415an+MT52+RS485+RTS
Brand: EPEVER
Model: EPEVER
Color: Tracer8415AN-T
Size: Tracer8415an+MT52+RS485+RTS
Features
- ✦Tracer-AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability and high industrial standard.
- ✦Tracer8415AN MPPT charge controller automatically identifying 12/24/36/48VDC system voltage.Rated charging/discharging current 80A. Maximum PV input power 1000W/12V 2000W/24V 3000W/36V 4000W/48V. Maximum PV open circuit voltage 150V. Common negative ground design.
- ✦The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application.
- ✦The remote temperature sensor RTS and the voltage sensor design will collect accurate data of battery temperature and voltage.
- ✦EPEVER Tracer-AN series support PC software, APP and MT-52 to monitor or set the parameters. Compatible with various battery options: Sealed, Gel, Flooded and Lithium.
Details
The EPEVER Tracer8415AN MPPT solar charge controller automatically identifies 12/24/36/48VDC systems and supports an 80A rated charging and discharging current. It includes an MT52 remote meter, remote temperature sensor, voltage sensing, isolated RS485 communication with MODBUS support, and monitoring through PC software, an app, or MT-52.
UPC: 732376583633
