Mdxtog Hydroelectric Generator Mdxtog-001

Brand: Mdxtog

Model: Mdxtog-001

Color: One Color

Size: One Size

Features

• 1. Simple scoop-type blades are used to form a water turbine, which consists of a casing, a nozzle, an impeller and a generator. Its design is extremely simple. When high-speed water flows from the nozzle to the blades, the blades rotate at high speed, thereby driving the generator to generate electricity.
• 2. Because of its simplicity, it has the characteristics of small size, simple structure, reliable operation, and convenient installation and use. It is suitable for mountainous households with sporadic and tiny water resources to solve lighting, TV sets and other power generation equipment.
• 3. The oblique impact hydroelectric generator set belongs to the generator set with high water head and low flow rate, and the generally applicable water head range is 5-70 meters.
• 4. Its working principle is: the jet coming out of the nozzle is not tangential, but along a direction that forms an angle with the plane of rotation of the runner, enters the bucket blade from one side of the runner, and leaves the bucket blade from the other side .
• 5. If you have any questions, please contact us as soon as possible, and we will solve the problem for you. Since the package is too large and heavy, we will use sea transportation, and the transportation time is about 30-35 days. Please forgive me.

Details

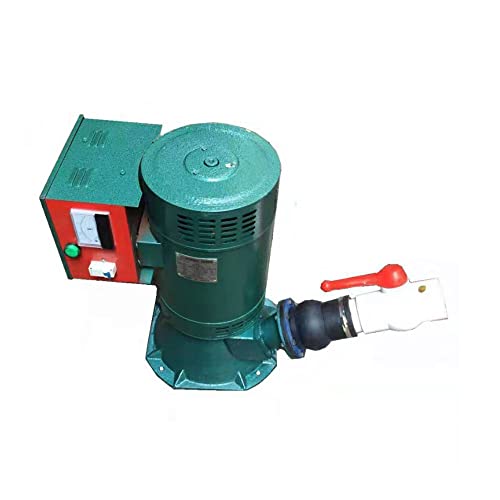

The Mdxtog-001 hydroelectric generator uses a scoop-type water turbine with a casing, nozzle, impeller, and generator. Designed for high water head and low flow rates, it is intended for applications such as lighting, televisions, and other power equipment where suitable water resources are available.

EAN: 9031029495455
