SYPPCH 48V Split-Phase Pure Sine Wave Inverter

Brand: SYPPCH

Features

• With 110V & 220V & Solar Panel 3.5" LCD Display With 110V Battery Charger With UPS & ATS & Power Save on With 120A MPPT Solar Controller 48v-Build In(DC30-60V input to DC48V output to battery bank)
• For L1,N1,N2,L2 AC output L1+N1=110V (L1 is live,N1 is neutral) L2+N2=110V(L2 is live,N2 is neutral) L1+L2=220V(L1 is 220v live,L2 is 220v neutral) can not connect L1+N1+N2+L2 at the same time
• AC 110V: 15000W continue power,60000w peak power AC 220V: 15000W continue power, 8000w 5mins, 60000w peak power
• Note: this item is 48V DC Input, usually when you use big power,the best Input voltage is 48V,because the amp will become small, will not cause the inverter getting so hot, if inverter not hot, the efficiency will arrive 2-3%,means can go to 92-94%, also your battery bank can keep very good performance! watt=volt x amp, once your voltage getting high, your amp will become small.
• this inverter is LF inverter, we called low frequency, with big transformer inside,this design just for the heavy duty appliance, like pump, motor, freezer, grinder, microwave, heater.
• For the controller input side, we plus 54v super capacity, 100A/sec, thats around 10a/secs.
• 1. In the full sunshine, for day time 8hours, usually full capacity from solar only 6hours, rest 2-3hours would be weak light, no more electricity come in, but with super capacity design, at least will help you to catch 10% more power, lets say 100a, you may possible get 10a/hour x 3hours=30a. 30a x 30daysx12months=10800amp/year.
• 2. In the cloudy condtions, super capacity also help you to catch the power if still can get small volt, because the input voltage is 0-54v, this smart guy will not lose any chance to help you catch more & more.
• 3. More fast respon time than CPU MPPT control, even in the full sunlight will help you to charge battery bank more faster.
• solar panels combined with supercapacitors can store small currents in low-light or cloudy conditions. One of the characteristics of supercapacitors is their ability to charge and discharge quickly, enabling them to effectively capture and store small currents.

Details

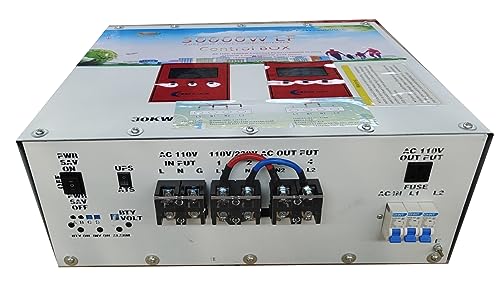

SYPPCH low-frequency split-phase inverter with a 48V DC input, pure sine wave AC output, built-in battery charger, UPS and ATS functions, and power-save mode. Its integrated MPPT solar controller supports solar charging, while the LCD display provides system information for practical monitoring.

UPC: 797427331465
