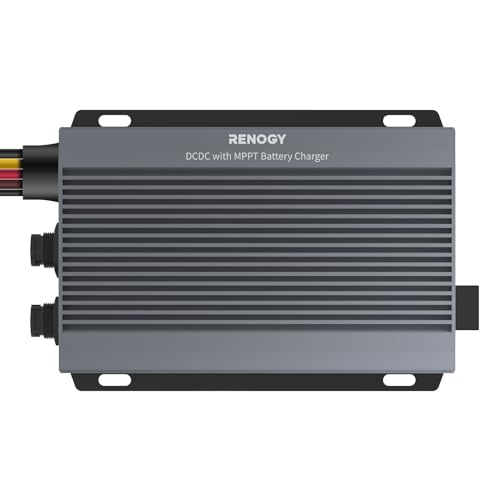

Renogy 12V/24V 50A MPPT Battery Charger, Silver Grey

Brand: Renogy

Model: 12V/24V 50A MPPT Battery Charger

Color: Silver Grey

Size: 12V/24V 50A Battery Charger

Features

• 【Max. 720W Output Power & 12V/24V boost and buck logic】720W charging power allows a 1.2kWh battery to be fully charged within 1.8 Hrs. With boost and buck logic, the battery supports 12V system, 24V system, 12V power input and boost to 24V battery, 24V power input and buck to 12V battery. Expanding your system DIY options for greater versatility.
• 【Heat-resistant & Space Saving & IP67】Withstand extreme temperatures from -31℉ to 176℉ and maintain full-load operation even at 131°F. With the heat-resistant feature and compact size: 7.01x4.78x1.47 in, the battery charger is small and safe enough to be placed in engine compartment to save living space in RV. IP67 free you from worries when driving on the muddy road or under the bad weather.
• 【Advanced Dual Power Input】Solar panel and engine power input. When solar power is adequate, the MPPT battery charger charges only by solar. When solar power is slightly inadequate, the MPPT battery charger adopts both solar and the starter battery to charge. When solar power is severely inadequate, the battery charger charges by utilizing only the starter batter. There will be Max. 50A total output no matter which charging method is chosen.
• 【99% Tracking 97% Charging 94% Conversion & Battery Guard】Features with MPPT, the DC-DC battery charger is with 99% tracking efficiency, 97% charging efficiency, 94% conversion efficiency. There are comprehensive electric protections safeguard the charging process, like over-voltage, over-current, overheat, reverse current, reverse prevention circuit and battery isolation, etc.
• 【Wireless and Wired Remote Monitoring】Monitor power data in real-time via the built-in Bluetooth module, ensuring seamless control through DC Home app or Renogy One Core(optional). With wired CAN communication, stay connected and in command, optimizing energy usage for an efficient and worry-free travel experience.
• 【Drop-Resistant】Sheet metal casing gives the charger a robust shell that withstands drops and impacts.
• 【Mute and Excellent Heat Dissipation】Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures highly efficient heat dissipation. The excellent heat dissipation maximum charging efficiency and keep your battery in safe when you are in a relaxing and quiet surrounding.

Details

The Renogy 12V/24V 50A MPPT Battery Charger supports solar and engine power inputs, with boost and buck logic for 12V and 24V battery systems. Built-in Bluetooth monitoring, wired CAN communication, IP67 protection, electrical safeguards, and fanless heat dissipation support convenient, quiet charging.

UPC: 840315223769
