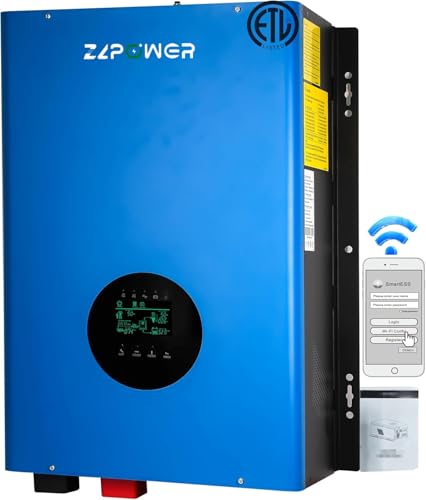

ZLPOWER GS Series Pure Sine Wave Solar Inverter

Brand: ZLPOWER

Model: 3807f210-0cad-4872-a6a4-9fc04ab049a2

Color: Blue

Size: 12KW

Features

• 🌞💡【120 / 240 Split Phase AC Output】12KW watts low frequency power inverter with transformer, 36kW watts Peak ,48 volts DC input. The inverter is split-phase and will output 110/120 Vac, and it can set via the LCD screen 50 or 60Hz Output. Support to run different batteries including Lead-Acid, GEL /Lithium battery,Compatible to mains voltage or generator which charge the battery or power the load. With lithium battery communication function.
• 🌞💡【Built in 2xMppt solar controller】Smart Remote Control, Automatic Generator Starting (AGS)when low battery voltage or no utility, Support 2x80A MPPT Solar Charger Controller,which can accept two strings of 80A PV (Max 4500w) input from three solar arrays or parallel to accept 160A (Max 2X4500w) input from one big PV array.Maximum charging current 240A, Smart fan adjustment(The fan automatically adjusts the wind speed according to the ambient temperature).
• 🌞💡【Working Mode】Three modes to choose from ac priority,DC priority, Intelligent mode.The charging current can be set through the LCD screen.With reliable intelligent design, GS series solar inverter can be available to complicated appliances. Not only used for common appliances such as TV computer, lights, fans.but also suitable for inductive loadings such as refrigerators, airconditioners, motors, washing machine,pumps compressors and laser printers.
• 🌞💡【Low Frequency Inverter】 Built-in pure copper low frequency transformer, multi-protection against overload, short circuit, over-temperature, under & over voltage. the transformer handles higher power spikes with longer duration when it comes to driving inductive loads such as electric motor, pump, compressor, air conditioners.AC output is synchronized in phase and in frequency with the AC input source to protect the inverter and load for seamless transfer.
• 🌞💡【ETL certification to UL 1741 standards 】In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.We strive to reliable, cost-effective clean energy products and power quality life.The GS Series Inverter by an ETL certification to UL 1741 standards ,This will be your best choice.
• 🌞💡【GS Series Low Frequency Inverter 】 GS inverter is low frequency pure sine wave Dc 48V to AC 220V all in one inverter. Using advanced DSP digital control technology to achieve higher power density integration and miniaturization, in addition to being suitable for various types of loads, it also has two built-in 80A optional MPPT solar charge controllers to the greatest extent, it can meet the needs of users in various places where electricity is used and users in areas without electricity.

Details

The ZLPOWER GS Series inverter provides pure sine wave power with split-phase AC output and selectable 50 or 60Hz frequency. It includes two MPPT solar charge controllers, adjustable charging modes, LCD controls, generator-start support, lithium battery communication, and protection against overload, short circuit, over-temperature, and voltage issues.

UPC: 768556810107
