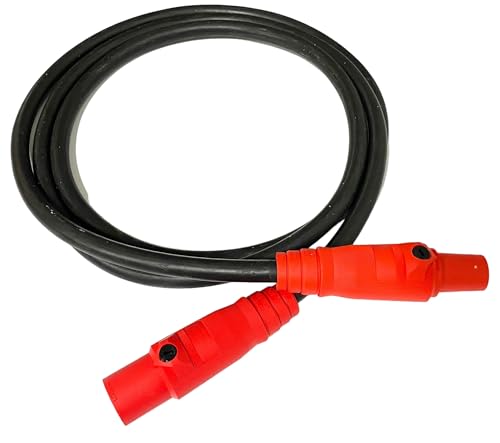

ACDC Type W Generator Power Cable, Red, Series 16 Camlocks
$799.99
Brand
ACDC
Category
Cords, Plugs & Adapters
GTIN / UPC
721755370087
SKU
721755370087
“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.
View full product details
Shipping destinations, methods, costs and estimates are shown at checkout for eligible direct orders.
Questions? Contact Eco Sweet Home at info@ecosweethome.com.
Find supplies for gardening, patio living and outdoor projects in one store.
Product Details
Original listing and package details
2/0 AWG Black Type W Generator Power Cable Rated for 300 Amps, Male/Female Series 16 Camlocks, Power Cord (RED, 100 FT)
Listed size / pack: 100 FT
Brand: ACDC
Color: RED
Size: 100 FT
Features
- Type W CAM Lock Cable Extensions are built with 2/0 cables rated for 300 Amps for high-performance & durability.
- Ideal portable power solution for heavy-duty applications
- Manually Assembled in the USA and hand-tested for quality assurance
- NEMA 3R Cable built with CPE rubber insulation for abrasion resistance Optimal for connecting portable power distribution units such as switchboards, transfer switches, and transformers to a generator or other temporary power source All components are RoHS approved, UL listed, CSA certified, and MSHA compliant.
- HUBBELL Series16 Taper Nose - Male/Female Camlock Plugs
- Industry Approvals UL 44, 1650, and 2556 cULus Listed NEMA 3R Rated CSA C22.2 No. 96 and No. 2556 ASTM B3, B49, and B172 MSHA Approved FT-1, FT-2, and FT-5 RHH/RHW/RHW-2 RoHS Compliant
- Conductor Rope-lay, bunch-stranded 30 AWG copper conductor Bare ASTM Class K copper Voltage Rating 600 V; 2,000 V Insulation & Jacket EPDM — low-smoke, halogen-free compound (Insulation) CPE — proprietary compound (Jacket) Resistance Properties Abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight/UV, and water Temperature Range -40°C to 90°C (-40°F to 194°F)
Details
ACDC Type W generator power cable uses 2/0 copper conductors and CPE rubber jacket construction for abrasion resistance in heavy-duty portable power applications. Male/female Series 16 Camlock plugs connect portable power distribution equipment, such as switchboards, transfer switches, and transformers, to a generator or other temporary power source.
UPC: 721755370087
