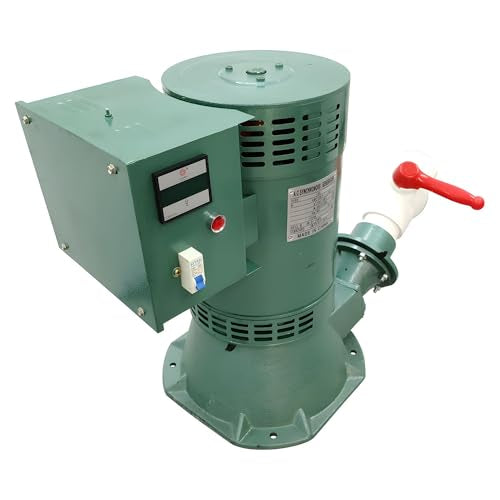

Banfluxion Hydroelectric Generator with Voltage Regulation

Brand: Banfluxion

Model: e214056a-ed15-4acc-857c-361acade1992

Features

• Main Parameters: Phase number: 1, Current: 22.8A, Flow rate: 0.035m³/s, Speed: 1500r/min, Excit.Volt: 49V, Excit.Curr: 2.6A, Inlet bore: 3"(7.5CM)
• Good Quality Material: The hydroelectric generator is equipped with a sturdy turbine shell and generator shell, made of 100% copper wire, which can withstand impact and will not deform under harsh conditions, has long service life
• Automatic Voltage Regulation: The voltage of the generator can be regulated automatically, with leakage protection. It can emit 220V electricity without the need for batteries and inverters, which can lower costs and improve energy efficiency, more reliable to use
• Simple Structure Design: The machine includes a direct connected single-phase AC generator with a diagonal turbine, using a simple spoon shaped blade to form a hydraulic turbine. When the high-speed water flows from the nozzle to the blades, the blades rotate at high speed, driving the generator to generate electricity. The electricity can be generated directly from naturally flowing river water. Suitable water head (drop height) range: ≥49FT(15m)
• Heat Dissipation Holes: The hydro generator is designed with a heat dissipation window, which can help timely discharge the heat generated during the motor operation, ensuring the machine can work stably for a long time

Details

The Banfluxion hydroelectric generator uses a direct-connected single-phase AC generator with an oblique impact turbine and copper wire construction. Automatic voltage regulation and leakage protection support 220V output without batteries or inverters, while heat dissipation openings help release operating heat. It is designed for use with naturally flowing river water and suitable water head.

UPC: 198462112529
