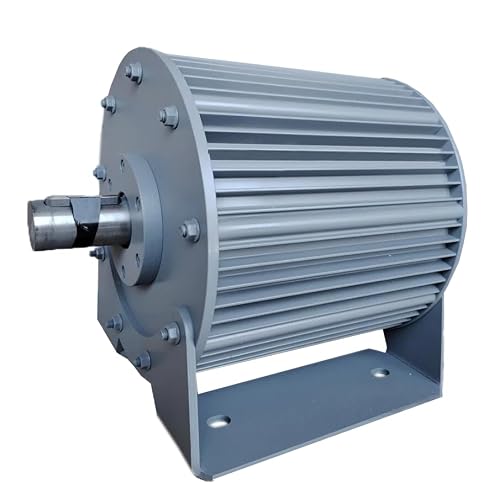

NINILADY G-PMG Permanent Magnet Generator

Brand: NINILADY

Model: G-PMG

Size: 220V

Features

• Compact Internal Structure: This permanent magnet generator uses two structural forms: parallel structure and series magnetic circuit structure, which simplifies and compacts the internal structure of the generator, reduces the rotational inertia of the rotor, and increases the power of the generator by increasing the actual speed
• Excellent Performance: Our permanent magnet generator has excellent low-speed high-output power performance. When operating at low speeds, the permanent magnet generator performs well and has high output power
• Special Stator Design: The permanent magnet generator rotor uses a patented alternator, combined with a special stator design, effectively reducing the generation of resistance torque while ensuring good matching characteristics between wind turbines and generators, resulting in reliable operation of the unit
• Brushless Design: The brushless permanent magnet generator, equipped with a collector ring, eliminates electric sparks during operation, thereby avoiding radio interference and significantly improving operational performance
• High Efficiency and Energy Savings: Within the speed range of 1,500–1,600 RPM, the average efficiency of the permanent magnet generator can reach 75–80%. Compared to conventional generators, the permanent magnet generator demonstrates superior energy efficiency and higher conversion efficiency

Details

The NINILADY G-PMG permanent magnet generator features a compact internal structure, brushless design, and special stator intended to reduce resistance torque for reliable operation. It delivers low-speed, high-output performance and has an average efficiency of 75–80% within the 1,500–1,600 RPM speed range.

UPC: 752815664846
