CANPUMP CTX 2117 HY Hydraulic Pressure Washer Pump

Brand: CANPUMP

Model: CTX 2117 HY

Color: Black

Features

• HIGH-FLOW PERFORMANCE: Delivers 2100 PSI at 17 GPM, ideal for heavy-duty industrial cleaning, commercial pressure washing, construction equipment, agricultural machinery, fleet vehicles, building exteriors, concrete surfaces and mobile on-site cleaning powered by a hydraulic source
• PUMP SPECIFICATIONS: Pump mechanism: Triplex plunger | Pump inlet: 3/4″ female (3/4″ male to 1″ male adapter included) | Pump outlet: 3/8″ female | Oil grade: SAE 80W-90 oil | Unloader valve: Not included
• HYDRAULIC MOTOR SPECIFICATIONS: Housing: High-strength aluminum alloy | Nominal displacement: 50 ml/r | Rated pressure: 2,320 psi (160 bar) | Max pressure: 2,900 psi (200 bar) | Rated speed: 2,500 rpm | Min speed: 600 rpm | Max speed: 3,000 rpm | Output torque: 93.6 lb-ft (127 N⋅m) | Inlet: 25 mm | Outlet: 35 mm
• DURABLE BUILD: Brass head and high-strength aluminum alloy body with precision ceramic plungers and multi-process ground steel alloy crankshaft for commercial-grade durability, heavy-duty water pump performance and long service life in harsh environments
• ENHANCED EFFICIENCY: Low flow resistance manifold improves water inlet performance, reduces cavitation risk, minimizes vibration and noise and optimizes volumetric efficiency for smoother operation and extended pump lifespan
• RELIABLE OPERATION: Optimized check valves with unique centering structure and simulated flow channel design improve self-priming, maintain stable pressure and ensure consistent performance under heavy workloads and fluctuating water supply
• VERSATILE APPLICATIONS: Compatible with hydraulic-powered systems on skid steers, tractors, utility vehicles and custom pressure washer rigs; perfect for mobile industrial cleaning, fleet washing, farm machinery maintenance, construction site cleanup and commercial pressure washing

Details

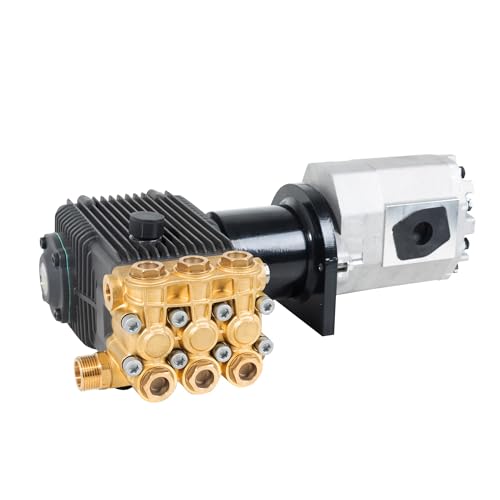

The CANPUMP CTX 2117 HY is a hydraulic triplex plunger pressure washer pump for mobile and commercial cleaning systems. It features a brass head, aluminum alloy body, ceramic plungers, optimized check valves, and a low-resistance manifold designed to support stable pressure, smoother operation, and reduced cavitation risk. The pump inlet adapter is included; an unloader valve is not.

EAN: 6280709963095
