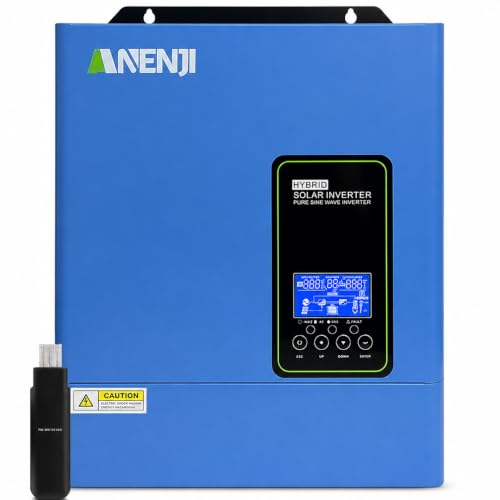

Aninerel 4200W Hybrid Solar Inverter 24V DC to 110V/120V AC, Pure Sine Wave Hybrid Inverter with 120A MPPT, 6200W PV Input, 60A AC Charger, Wi-Fi Adapter Included, Off-Grid Inverter Charger
Garden & Outdoor

Aninerel

Aninerel ANJ-4.2KW-LV-W Hybrid Solar Inverter

$258.00
Brand Aninerel
Category Solar & Wind Power Inverters
GTIN / UPC 717235756823

“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.

View full product details
Shipping destinations, methods, costs and estimates are shown at checkout for eligible direct orders.
Questions? Contact Eco Sweet Home at info@ecosweethome.com.
Find supplies for gardening, patio living and outdoor projects in one store.

Product Details

Original listing and package details

Aninerel 4200W Hybrid Solar Inverter 24V DC to 110V/120V AC, Pure Sine Wave Hybrid Inverter with 120A MPPT, 6200W PV Input, 60A AC Charger, Wi-Fi Adapter Included, Off-Grid Inverter Charger

Listed size / pack: ANJ-4.2KW-LV-W

Brand: Aninerel

Model: ANJ-4.2KW-LV-W

Color: Blue

Size: ANJ-4.2KW-LV-W

Features

  • 4200W PURE SINE WAVE OUTPUT: This Hybrid Inverter 24V system delivers 4200W rated power at 110V/115V/120V AC with selectable 50Hz/60Hz output. Up to 8400W surge power for 5 seconds provides startup headroom for compatible pumps, refrigerators, tools, and other inductive loads.
  • 120A MPPT SOLAR CHARGER: The high-voltage Solar Inverter accepts up to 6200W of PV power, with a 60V-450V MPPT operating range, 500V maximum PV open-circuit voltage, and 27A maximum solar input current. Always calculate cold-weather string Voc below the 500V limit.
  • FLEXIBLE OFF-GRID POWER MANAGEMENT: This Hybrid Solar Inverter supports Utility First, Solar First, SBU, and SUB output priorities, plus Solar First, Solar + Utility, or Solar Only charging. Maximum combined charging current is 120A, including up to 60A from AC, and battery-free operation is supported when system conditions allow.
  • 24V BATTERY SUPPORT AND COMMUNICATION: Use AGM, flooded lead-acid, user-defined, or compatible LiFePO4 battery settings. RS485 BMS communication supports configured protocols including Pylontech US2000, while RS232, RS485, and a 3A/250V AC dry-contact port help with monitoring and control.
  • WI-FI ADAPTER INCLUDED: The Wi-Fi monitoring accessory is supplied in the package, so no separate purchase is required. Wi-Fi is provided through the included external adapter rather than built into the inverter. Designed for indoor IP21 installation; this single-unit model does not support parallel or split-phase operation.

Details

The Aninerel ANJ-4.2KW-LV-W is a hybrid solar inverter with pure sine wave output, selectable 50Hz/60Hz operation, and a 120A MPPT solar charger. It supports Utility First, Solar First, SBU, and SUB output priorities, multiple charging options, RS485 BMS communication, and an included external Wi-Fi monitoring adapter.

UPC: 717235756823
