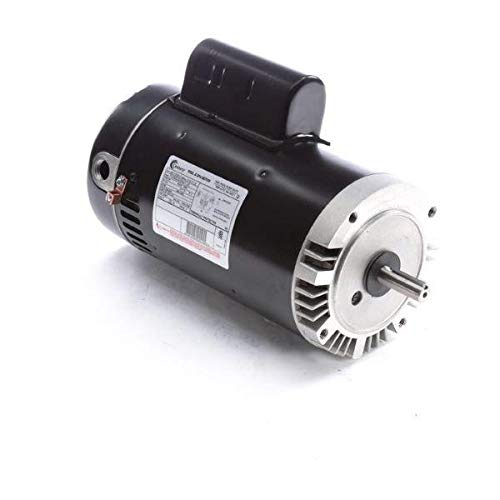

A. O. Smith SK1302V1 Pool and Spa Pump Motor

Brand: A. O. Smith

Model: SK1302V1

Features

• <b>Price For:</b> Each <b>Shaft Material</b>: 303 Stainless Steel <b>Motor Flange Material</b>: Aluminum <b>Motor Mounting Type</b>: Face <b>Shaft</b>: Keyed <b>Item</b>: Pool and Spa Pump Motor <b>Motor Design</b>: Capacitor-Start/Run <b>Shaft Dia.</b>: 5/8" <b>Motor Bearings</b>: Ball <b>Motor Shaft Rotation</b>: CCWSE <b>Ins. Class</b>: B <b>Motor Sub Application</b>: Pool and Spa Pump <b>RPM Range</b>: 3001-3600 <b>Motor Application</b>: Pump
• <b>Voltage</b>: 208-230 <b>Motor Thermal Protection</b>: Auto <b>Shaft Length</b>: 2-1/16" <b>Hz</b>: 60 <b>Finish</b>: Black <b>Motor Service Factor</b>: 1.15 <b>Full Load Amps</b>: 15.0-13.3 <b>Phase</b>: 1 <b>Standards</b>: UL Recognized (E14663), CSA Certified (LR4642) <b>Frame</b>: 56c <b>Motor Enclosure Design</b>: Open Dripproof <b>HP</b>: 3 <b>Nameplate RPM</b>: 3450 <b>Voltage Compatibility</b>: 115/208-230, 208-230, 208-240 <b>Ambient Temperature</b>: 50 Degrees C
• <b>Motor Efficiency Group</b>: Standard Efficient <b>Country of Origin (subject to change)</b>: Mexico

Details

A. O. Smith Century Electric SK1302V1 pool and spa pump motor features a 3 HP, single-phase design with a 3450 RPM nameplate speed and 208-230V operation. Its keyed 303 stainless steel shaft, aluminum motor flange, ball bearings, capacitor-start/run design, automatic thermal protection, and open dripproof enclosure support pump applications.

UPC: 786674031037
