Doheny’s Above-Ground Solar Pool Collector Kit

Brand: Doheny's

Size: 2.5' x 20' Collector Kit

Features

• Eco-Friendly Pool Heating: Uses solar energy to heat your pool, reducing reliance on gas or electricity and extending your swim season.

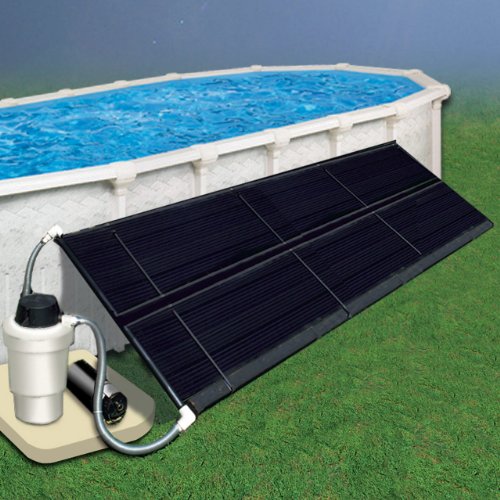

• Above Ground Solar Heating Panel Systems: Energy-saving solar pool system harnesses the sun’s rays to warm circulating water before returning it to the pool. The collector kit can be mounted on plywood (as shown) beside the pool or roof-mounted. Roof/rack mounting kit required for installation.
• Solar Panel Collector Kit Sizes: Available in 2.5' W x 20' L, 5' W x 20' L (includes two 2.5' W x 20' L panels), and 5' W x 10' L (includes two 2.5' W x 10' L panels). PVC or flex pipes not included.
• Above Ground Roof/Rack Mounting Kits: Include all necessary hardware for mounting panels on roofs or sloped plywood (as shown). Kit contains (5) 6' straps, 15 stainless steel mounting brackets, and (15) #14 stainless steel screws. 2-Way Diverter Valve: Can be plumbed into your filter/solar heating system to function as an on/off switch. Includes diverter valve and spacer.
• Above Ground Collector Sizing Chart: A 12'-15' round pool needs a 2.5' x 20' collector (40,000 BTU), while an 18'-24' round pool requires a 5' x 20' collector (80,000 BTU). For 27'-28' round pools, both sizes are needed (120,000 BTU). A 12' x 24' oval pool uses a 2.5' x 20' collector (40,000 BTU), while 15' x 30' and 16' x 32' oval pools need a 5' x 20' collector (80,000 BTU). An 18' x 34' oval pool requires both a 2.5' x 20' and a 5' x 20' collector (120,000 BTU).

Details

Doheny’s solar collector kit warms circulating pool water using sunlight before returning it to an above-ground pool. It can be mounted on plywood beside the pool or roof-mounted; a roof or rack mounting kit is required, and PVC or flex pipes are not included. A diverter valve can be added to the filter and solar heating system as an on/off switch.

UPC: 696859153280
