Mistcooling MC13040 High-Pressure Misting System
“Add to cart” starts a direct order with Eco Sweet Home. A link labeled for Amazon or another retailer takes you to that retailer, which then handles the transaction under its own terms.
View full product detailsProduct Details
Original listing and package details
High Pressure Misting System 1500 PSI - Patio Misting System | Restaurant Misting System | Industrial Misting System | with Stainless Steel Misting Nozzles | Flexible (40 Feet - 10 Nozzles)
Listed size / pack: 40 Feet - 10 Nozzles
Brand: mistcooling
Model: MC13040
Size: 40 Feet - 10 Nozzles
Features

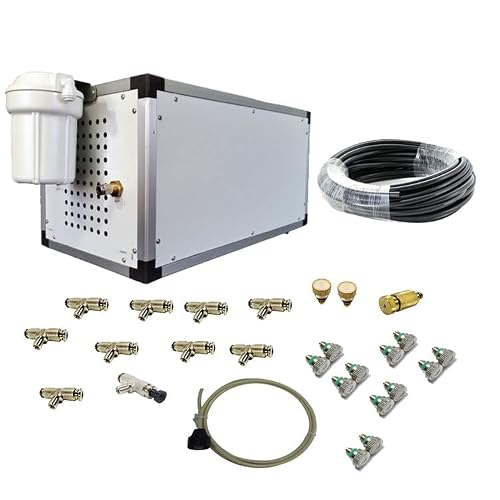

- { Features }: Base 10 Nozzle Kit Contains: - 1 - Max1500 psi High pressure pump with built-in water on/off valve, low water cut off switch, pressure bypass, commercial 5-micron filtration, Outdoor Rust Proof Enclosure with on/off Switch; - 40ft 1/4" Nylon Tubing-Black - 10 - HP Push Lock Misting Tees - 10- Stainless Steel Orifice Nozzles (0.006") - 1 - Push Lock End Plug - 2- Nozzle plugs - 2- Replacement Nozzles - 1- Drain Valve Assembly - Stainless Steel Mounting Clamps
- { Misting Pump Specs }:1500 PSI Misting Pump: 0.15 amp; 0.30 GPM - For up to 40 Misting Nozzles - Comes with Pressure Adjustment Valve to allow increase or decrease of the outlet water pressure. - Included Solenoid Valve controls flow of water in the misting pump - Included Pressure Switch or no cut off water switch will turn pump off, if no water supply - Included Thermal Safety Switch - Maximum Speed 1800 rpm - Noise level: 75 DB - Maximum Inlet Pressure –100psi
- Filter: - 5 Micron Filter - Filter in the package comes with 3/8 inch inlet- outlet fitting. - Standard pump comes with ¼ inch push lock type fitting; However, it is placed on 3/8 inch male and ¼ inch female adapter. - Outlet comes with ¼ inch fitting as standard; however, depending on package requirement it can be modified to 3/8 inch. - Scale free filters can also be added to mist systems to prevent clogging of nozzles due to hard water.
- Tubing - ¼ Inch OD Tube - Rated for 1500 PSI - Nylon Tubing - UV Treated - Available in Black, White, Beige and Grey Colors
- Fittings - ¼ Inch - Push Lok – Push to Connect - Nickel Plated - Rated for 2000 PSI - Re-Usable - Misting Tee comes with 10/24 threads - End Plug – Simply connect it to the misting Tee. MC13040
Details
The Mistcooling MC13040 misting system includes a high-pressure pump with a built-in water on/off valve, low-water shutoff, pressure bypass, and 5-micron filtration. Stainless steel misting nozzles, push-lock fittings, and nylon tubing provide the components to set up an outdoor misting system.
UPC: 840048602596
