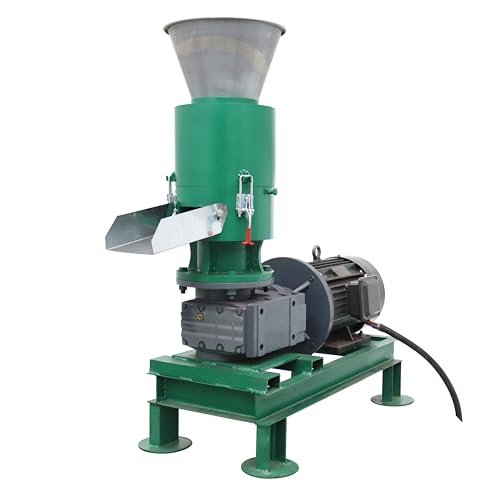

TECHTONGDA Wood Pellet Machine Green

Brand: TECHTONGDA

Model: Wood pellet machine

Color: Green

Size: 8mm

Features

• [Application] The wood pellet machine is designed to process various waste materials—including wood, straw, cotton stalk, rice husk, peanut shell, bamboo, coal powder, and waste paper—into high-quality fuel pellets. The finished pellets are ideal for residential heating, commercial or industrial heating, and power generation.
• [Powerful Motor & High Output] Equipped with a high-quality 7500W/60Hz motor running at 1720r/min, this pellet machine delivers stable performance and long-lasting durability. It produces up to 60 kg (132 lbs) of pellets per hour, with a combustion value of 1361-1950 kcal/lb, ensuring excellent thermal efficiency.
• [Durable Construction] Built with a robust 8mm (0.31-inch) grinding disc and dual rollers, all made from high-grade, heat-resistant steel, this machine is engineered to withstand high-pressure operation and extend service life. The gearbox comes pre-lubricated with gear oil for smooth and reliable transmission.
• [Oversized Feed Design] The extra-large feed opening (inner diameter: 11 inches, depth: 8.3 inches) and widened discharge port (8.46 *4.33 inches) make feeding quick and hassle-free, while effectively minimizing material splatter for improved working efficiency.
• [Safety Protection] The machine is equipped with a built-in circuit breaker and a safety lock on the grinding chamber for secure operation. Please note: This unit does not come with a power plug—it must be hardwired to a breaker in your home distribution panel. Be sure to remove the flat figure-8 rubber ring before first use to prevent oil leakage and ensure safe, proper operation.
• [Note] Before starting, always remove the hopper and check the roller balance. If unbalanced, adjust using the two screws on the side. Confirm that the lubricant level is above the center mark before use. Replace the lubricating oil after the first 85 hours of operation, and thereafter replace it every 4-6 months while regularly checking the oil level.

Details

The TECHTONGDA wood pellet machine processes materials such as wood, straw, rice husk, peanut shell, bamboo, coal powder, and waste paper into fuel pellets for heating and power generation. It features dual heat-resistant steel rollers, a built-in circuit breaker, a grinding-chamber safety lock, and a gearbox pre-lubricated with gear oil. The unit must be hardwired to a breaker and requires lubricant and roller-balance checks before use.

UPC: 198462826440
