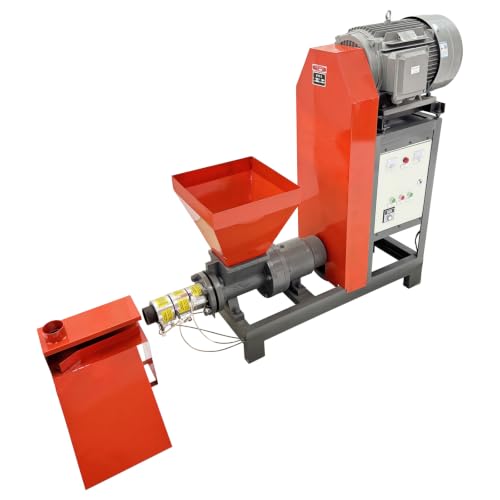

TECHTONGDA L057385 Charcoal Briquetting Machine, Red

Brand: TECHTONGDA

Model: L057385

Color: Red

Size: 74.41*24.02*65.75 inches

Features

• 【Low Raw Material Cost】: This equipment does not require the addition of any binders. It can directly use agricultural and forestry residual biomass such as wood chips, rice husks, peanut shells, sawdust, and straw as raw materials, and through high-pressure extrusion, turn them into rod-shaped solid fuel. It fully recycles and utilizes waste agricultural and forestry materials, significantly reducing the raw material procurement cost in the production process
• 【Stable & High Output】: By adopting screw extrusion combined with electric heating technology, it can produce 440.9LB of formed carbon blocks per hour. The density of the produced rod-shaped fuel can reach 1200-1300kg/m³. The overall texture is dense and uniform, and the finished product specifications are uniform and regular. The production process is time-saving and labor-saving, meeting the needs of medium and small-scale batch production
• 【Precise Constant Temperature Control】: Equipped with a digital temperature control system and temperature adjustment indicator lights, it can maintain stable operation at the set temperature, with precise temperature control and small error. Combined with three independent heating rings, it can achieve uniform heating throughout the cylinder, effectively improving the quality of block forming and avoiding problems such as loose forming and cracking caused by temperature fluctuations
• 【High Strength Durable Body】: The core extrusion cylinder has undergone special heat treatment, featuring high hardness, wear resistance, and high-temperature resistance. It is equipped with a 22KW high-torque asynchronous motor and a large-pitch extrusion screw. The entire machine has a sturdy and durable structure. The modular heating ring and independent receiving bracket design make daily cleaning, maintenance, and replacement very convenient
• 【High Quality Finished Product】: The produced rod-shaped solid fuel has an outer diameter of approximately 1.97", an inner diameter of about 0.78", and a length greater than 1.97". Its calorific value ranges from 4400 to 5000kcal/kg, which is over 20% higher than that of ordinary wood. It is easy to ignite and has a high density, making it widely suitable for barbecues, catering, and heating

Details

The TECHTONGDA L057385 charcoal briquetting machine uses screw extrusion and electric heating to form rod-shaped solid fuel from materials such as wood chips, rice husks, peanut shells, sawdust, and straw without added binders. Digital temperature control, independent heating rings, a heat-treated extrusion cylinder, and a modular design support consistent forming and easier cleaning and maintenance.

UPC: 883669005018
